Mobile Home Plumbing Repair, Job by Job

By Haverlane Editorial Team · Published Aug 24, 2026 · Reviewed per our editorial policy

Most mobile home plumbing repair falls into 6 recurring jobs, and 4 of them sit under the floor rather than behind a wall. HUD gives these homes a single 3 inch drain outlet and supply branches as small as 3/8 inch.

The fixture above the floor looks ordinary. The pipe feeding it, its supports and the skin that closes over it again are set by a federal standard written for this housing type.

Repair here is not house plumbing at a smaller scale

Plumbing rules for these homes sit in 24 CFR part 3280, subpart G. The Standards HUD writes run from body and frame through thermal protection, plumbing, electrical and fire safety, so a fixture swap can raise a code question a stick built house never does.

Sizing shows it fastest. Where a branch serves one fixture, the table in 3280.609(f)(1) drops to 3/8 inch outside diameter, and that smallest row is capped at a 6 foot run.

The system was built for 80 psi at the inlet (3280.609(a)(1)), and the installation standard requires a pressure reducing valve above that (24 CFR 3285.603(b)). A well or park main above it keeps opening the same fittings.

If flow is the complaint, read the causes behind narrow supply lines and long branch runs first. A hose bib gauge over 80 psi turns the job into a reducing valve quote.

The 6 repairs that come up most in the field

Materials are not open season. Section 3280.609(d)(1) allows copper in Type K, L or M, standard weight brass, galvanized wrought iron or steel, and plastic that is approved or listed, with a hot water listing required besides on every plastic line and fitting (3280.609(d)(1)(i)). That clause is what a weekend plumbing fix breaks most often.

Two more traps under the floor: piping and wiring may not share holes, and plastic pipe may not sit where an appliance radiates heat onto it (3280.603(b)(7)).

Fixture work sits at the easy end of that list, where most owners start. Swapping the pan and flange is covered step by step in replacing a mobile home toilet, the tight cabinet under a kitchen or bath basin in what fits a mobile home sink, and the shallow pans and offset drains in tub and shower plumbing.

The belly is part of every under-floor repair

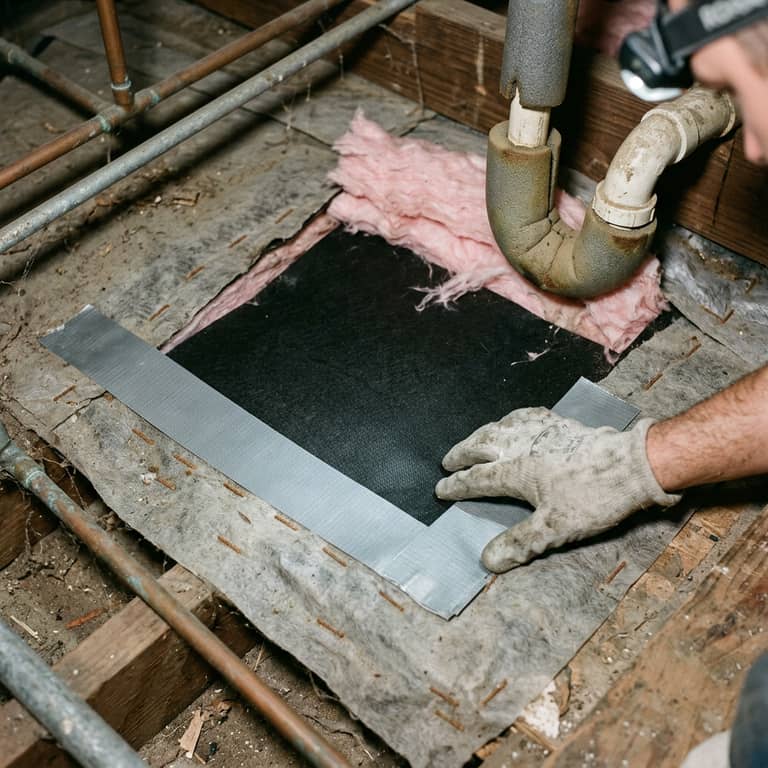

Pipes here live in the cavity closed off by the bottom board, so the work has two halves: the pipe, and the skin. HUD covers the second at 24 CFR 3285.804. Nothing closes until missing insulation is back in place; from there the section wants splits and tears taped or patched by the manufacturer's method, P-traps insulated and covered, and the edges of the repair sealed.

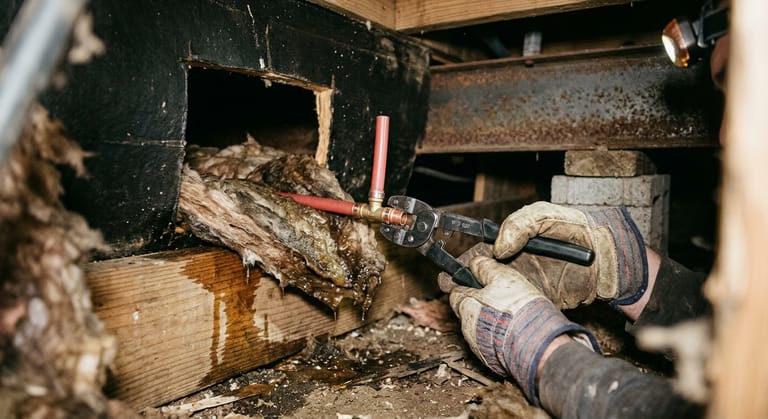

Support spacing decides whether the fix lasts. Horizontal plastic water piping needs support every 3 feet, drainage piping every 4 feet (3280.608(b)), and the hangers holding it may not crush, cut or scuff the pipe (3280.608(c)(3)).

Patch a small tear yourself if you can get under the home safely. Once the opening spans joists, or wet insulation is in it, doing it twice costs more than the call.

Water heaters and gas: the licensed line, plainly

The water heater closet is where this stops being a homeowner project. Keeping the combustion system and the air inside the home fully apart is the rule, met with a direct vent (sealed combustion) appliance or an enclosure that has no door, no access panel and nothing open to the living space (24 CFR 3280.709(d)). Hence the outside access door.

Relief valve rules are equally exact. Whichever is lower, 150 psi or the tank's rated working pressure, is where relieving starts, with the temperature trigger at 210 degrees F or under. The discharge keeps full size out to the exterior, never under the home (3280.609(c)(1)).

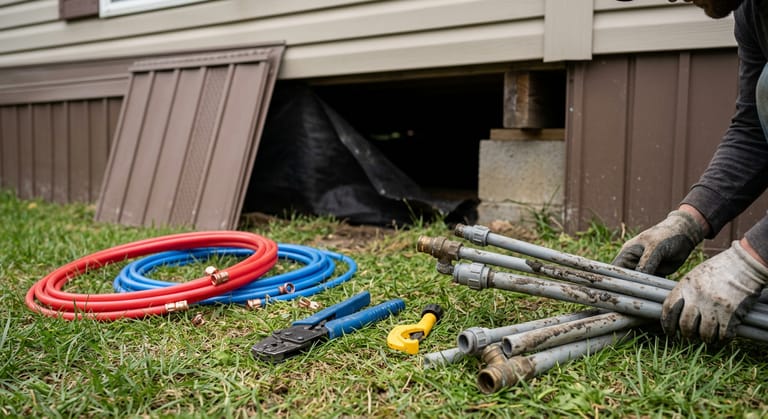

When a repipe beats another patch: plumbing installation on your mobile home

Polybutylene never left the federal materials list. The current text of 3280.604(c)(3) still names ASTM D3309 for polybutylene hot and cold water systems, next to CPVC and the PEX standards ASTM F876 and F877 that HUD brought current in a final rule of December 9, 2013 (78 FR 73966).

Repiping is routine permitted plumbing work. Washington State's Department of Labor and Industries keeps an alteration permit type plus its own pre-inspection form, F622-053-000, covering replacement of polybutylene water piping in a manufactured home. One state's process, but it shows what inspectors look for.

Three lines from it show how careful the work is: a bored hole in a floor joist keeps 2 inches clear of top and bottom edges and stays no wider than one third of the joist depth, insulation returns at its original R-value, and the bottom board gets a patch expected to last as long as what it replaces.

Two leaks in one season, or pipe that splits whenever a fitting is disturbed, is where patching stops paying. Ask for a repipe quote and a patch quote on one visit, then weigh both against the home's age.

Mobile home plumbing inspection: what actually gets checked

Under the standard an inspection means gauges, not a flashlight. Water piping has to hold 80 psi, give or take 5, for a full 15 minutes without the gauge dropping (3280.612(a)), and the drain, waste and vent system gets one of three alternative tests (3280.612(b)).

Underneath, that board is inspected for loosening, damage and tears before anything closes (3285.804). The shutoff valve required by 3285.603(c) has to be identified and reachable, its riser under the home or right beside it.

Plumbing services a mobile home needs, and a house does not

Three items belong on the scope and rarely reach a general service ticket. Freeze protection first: insulation or equivalent protection is required on any pipe or fixture exposed to freezing (3280.603(b)(4)), and a heat tape or pipe heating cable belongs under the home only where its listing and certification cover that use (3285.603(d)(3)). CPSC said in 1990, on six years of data, that more than half of the heat tape fires in its count involved mobile homes and trailers.

Second, drainability: everything except the fixture trap must be designed to drain (3280.603(b)(5)), which is what makes a winter blowdown possible. Third, belly closure, priced as its own line.

If the drain is the complaint instead of the supply, the single outlet at 3280.610(c)(1) changes the approach, and clearing that one sewer line has a method of its own.

How to vet plumbing contractors for your mobile home

Searching "mobile home plumbing repair near me" returns mostly general plumbers, which is fine if they answer three questions well. Do they stock small diameter stops and supply tubing. Do they carry bottom board patch material. Will belly closure appear as a priced line on the quote.

Ask for the scope in writing before tools come out: pipe material and listing, support spacing, insulation replaced at the same R-value, and how the bottom board gets closed. Anyone who answers those without hesitating has done this plumbing work before.

Where to stop, and who to answer to

Homeowner side: locating a leak, shutting water off at the riser, changing a stop or a trap, patching a small tear, swapping a water heater element with the breaker off. Past that, and especially with gas, venting or 240 volt work, it is licensed territory, and any mobile home plumbing repair that reopens the floor should be quoted with closure included.

Age argues for asking early. Census Bureau one year estimates for 2024 put roughly 4.6 million occupied homes in this category at pre-2000 construction, and about 1.6 million before 1980. Census folds boats and RVs into that same label, so the counts are approximate.
